iVEX-PLs-3001R

Explosion Proof Mini Bullet IP Camera

The iVEX-PLs-3001R is a compact 2MP explosion-proof bullet camera designed for reliable video surveillance in hazardous industrial environments. Its electropolished AISI 316L stainless steel housing features a weld-free lost-wax casting structure and is certified for Gas Zone 1 & 2 and Dust Zone 21 & 22. Equipped with a 1/2.8″ Sony STARVIS CMOS sensor, 3.3mm wide-angle lens, H.265/H.264/MJPEG compression, ONVIF support and PoE, the all-in-one design provides high-quality Full HD surveillance with simplified installation.

Explosion Proof Mini Bullet IP Camera

  • IECEx / ATEX / KCs / NEPSI / JPEx / TS Explosion-Proof Certifications
  • Gas: Ex d IIC T6 Gb, Zone 1 & 2
  • Dust: Ex tb IIIC T85°C Db, Zone 21 & 22
  • Electropolished AISI 316L Stainless Steel
  • Weld-Free Lost-Wax Casting Structure
  • IP67 Ingress Protection
  • Full HD 2MP, 1/2.8″ Sony STARVIS CMOS Sensor
  • 3.3mm Wide-Angle Lens / F1.4
  • 0.001 Lux Minimum Illumination
  • H.265 / H.264 / MJPEG Multi-Codec
  • ONVIF Profile S Support
  • PoE Class 3 (IEEE 802.3af)
  • Compact All-in-One Design for Easy Installation

ITEM iVEX-PLs-3001R
Construction AISI 316L Stainless Steel
Window Tempered Glass
Ex Certifications IECEx / ATEX / JPEx / NEPSI / KC / TS
Ex Certification (Gas) Ex d IIC T6 Gb, Zone 1 & 2
Ex Certification (Dust) Ex tb IIIC T85°C Db, Zone 21 & 22
Ingress Protection Rating IP67
Operating Temperature -25°C ~ +64°C
Operating Humidity Less than 90%RH

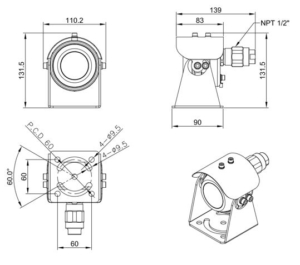

Dimensions 110.2(W) × 131.5(H) × 83(D) mm
Weight Approx. 1.8 kg
Supply Voltage PoE Class 3 (IEEE 802.3af)
Cable Entry 1 × 1/2″ NPT
Sensor Type 1/2.8″ Sony STARVIS CMOS Sensor
Effective Pixels 1920 × 1080 Pixels
Resolution 1920 × 1080 @ 30fps
Lens 3.3mm / F1.4
Angular Field of View (D/H/V) D: 138.0° / H: 103.0° / V: 74.4°
Minimum Illumination 0.001 Lux
Day & Night Auto / Color / BW
Shutter Speed Auto / Manual (1/30 ~ 1/30,000 sec)
AGC Auto
WDR On / Off
3DNR Auto
Defog On / Off
Privacy Zone 4 Blocks (On / Off)
Video Compression H.265 / H.264 / MJPEG
Dual Streaming Main Stream (1080P) & Sub-Stream (D1)
Bitrate Control CBR / VBR, Network Bandwidth Control
Max. User Access Up to 10
Ethernet Ethernet 10/100 Base-T
IP IPv4 / IPv6
Protocol TCP/IP, HTTP, STP/RTSP, UDP, DHCP, FTP, SMTP, NTP, ARP, ICMP, DDNS, ONVIF
ONVIF Yes (Profile-S)
