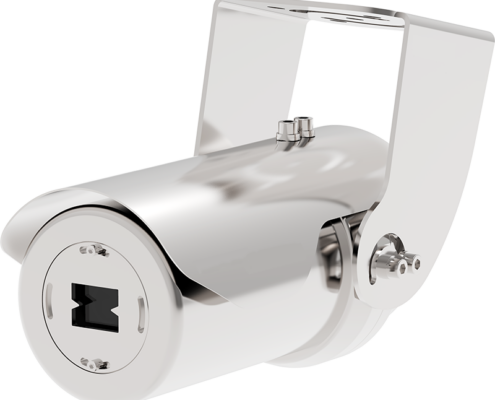

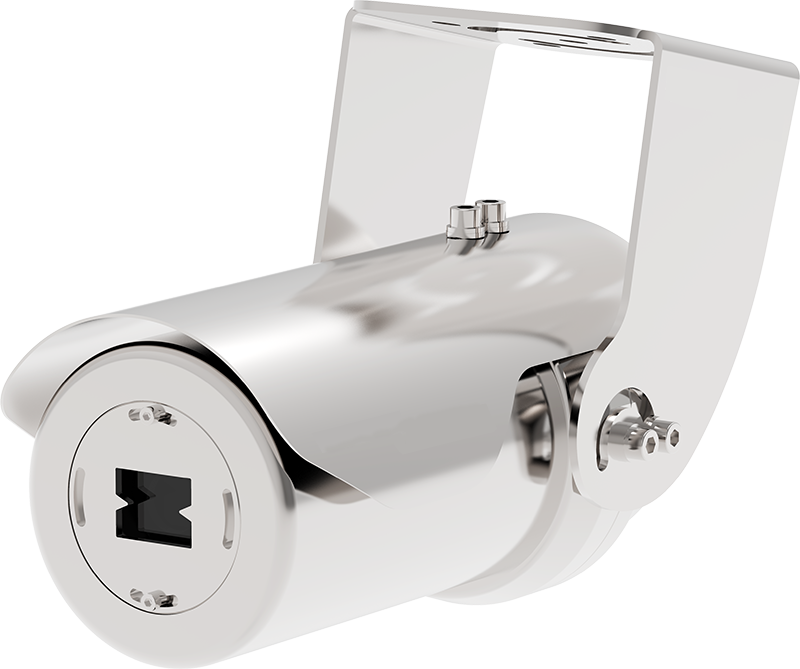

IVEX-PL-1000SGT

640X512 Thermal Explosion-proof Network Camera

The IVEX-PL-1000SGT is a high-performance explosion-proof network thermal camera designed for reliable temperature monitoring and surveillance in hazardous industrial environments. Its electropolished AISI 316L stainless steel housing features IP67 protection and a durable germanium glass window with AR/DLC coating and protection grid. Certified for Gas Zone 1 & 2 and Dust Zone 21 & 22, the camera supports IECEx, ATEX, KCs and TS explosion-proof certifications. Equipped with a VOx uncooled FPA detector, it supports thermal imaging up to 640 × 512 resolution, 25Hz frame rate, and thermal sensitivity of ≤50mK@f#1.0. With temperature measurement from -20°C to +120°C (up to 550°C in high-temperature mode), high-temperature alarm, ONVIF Profile-S and PoE support, the IVEX-PL-1000SGT is well suited for thermal monitoring in demanding industrial applications.

640X512 Thermal Explosion-proof Network Camera

  • Ex Certifications : IECEx / ATEX / KCs / TS
  • Ex Certifications (Gas) : Ex d IIC T6 Gb, Zone 1 & 2
  • Ex Certifications (Dust) : Ex tb IIIC T80˚C Db, Zone 21 & 22
  • Electropolished AISI 316L Stainless Steel
  • Ingress Protection Rating : IP67
  • Germanium Glass (AR / DLC Coating ) / Protection Grid
  • Ambient Temperature : -40°C~+65°C
  • Cable Entry : 1 x 1/2″ NPT
  • Vox Uncooled FPA / 640 (h) × 512 (v) Pixel / 384 (h) x 288(v) Pixel
  • 12㎛ Pixel Pitch, LWIR, 8 to 14μm
  • 640 (h) × 512 (v) Pixel Lens, 19mm (22.9° X 18.4°)
  • 384 (h) × 288 (v) Pixel Lens 13mm (28.4° X 21.4°)
  • Thermal Sensitivity of Detector (NETD) ≤50mk@f#1.0
  • Measurement Range : -20℃~+120℃ (High 550℃),
  • Accuracy ±2℃ or ±2% of ambient Temperature
  • Onvif Profile-S
  • NDAA Compliant

ITEM IVEX-PL-1000SGT
Ex Certifications IECEx / ATEX / KCs / TS
Ex Certifications (Gas) Ex d IIC T6 Gb, Zone 1 & 2
Ex Certifications (Dust) Ex tb IIIC T80°C Db, Zone 21 & 22
Construction AISI 316L Stainless Steel / Electro-polished
Window Germanium Glass (AR / DLC Coating) / Protection Grid
Ingress Protection Rating IP67
Ambient Temperature -40°C ~ +65°C
Dimensions 140(W) × 197.1(H) × 290.7(L) mm
Weight About 5.5 kg
Supply Voltage PoE Class 3 (IEEE 802.3af)
Cable Entry 1 × NPT 1/2″
Detector VOx Uncooled FPA
IR Sensor Resolution 640(H) × 512(V) Pixel / 388(H) × 284(V) Pixel
Pixel Pitch 12 μm / 17 μm
Lens (FoV) 19mm (22.9° × 18.4°) / 13mm (32.9° × 22.4°) Option / 13mm (28.4° × 21.4°) / 6.8mm (54.1° × 40.9°) Option
Frame Rate 25Hz
Thermal Sensitivity of Detector (NETD) ≤50mK@f#1.0
Measuring Range -20°C ~ +120°C (High 550°C)
Accuracy ±2°C / ±2% of ambient temperature
Temperature Alarm High Temperature Alarm
Temperature Alarm Range Setting Yes
Temperature Dynamic Range Setting Manual setting of upper/lower limit temperature color
Color Palette Rainbow and 9 others
Highest Temperature Display Yes
Temperature Compensation Yes
Number of Concurrent Users 8 (RTSP Streaming)
Compression Codec H.264 / MJPEG
ONVIF Profile-S
PoE Class 3 (IEEE 802.af)
