iNET-H1000

NUDE Type 4ch PoE Extend Ex-Proof Junction Box

The iNET-H1000 is a compact explosion-proof junction box with a built-in 4-channel PoE extender, designed for reliable network connectivity in hazardous industrial environments. Its electropolished AISI 316L stainless steel construction features a weld-free lost-wax casting structure, tempered glass window and IP66 ingress protection for excellent durability and corrosion resistance. Certified for Gas Zone 1 & 2 and Dust Zone 21 & 22, the iNET-H1000 supports IECEx, ATEX, KCs and TS explosion-proof certifications. It provides one PoE input and three PoE output ports through four 10/100Mbps PoE interfaces, supporting IEEE 802.3af, 802.3at and 802.3bt standards. LED indicators allow easy monitoring of power, PoE link and network status, while the distance extension function enables stable network transmission of up to 200 meters, making it an ideal solution for connecting multiple IP cameras in hazardous-area surveillance systems.

NUDE Type Ex-Proof Junction Box

Smallest, Built-in 4ch PoE Extend

  • Ex Certifications : : IECEx / ATEX / KCs / TS
  • Ex Certifications (Gas) : Ex d IIC T6 Gb, Zone 1 & 2
  • Ex Certifications (Dust) : Ex tb IIIC T78˚C Db, Zone 21 & 22
  • Electro－polished AISI 316L stainless steel
  • Lost-wax casting mold structure without welds
  • Anti-corrosion / Anti-chemical / Anti-salt finished
  • Tempered Glass
  • Ingress Protection Rating : IP66
  • About 2.5Kg
  • Ambient Temperature : -40°C~+60°C
  • 4Ch PoE Extend (1Ch PoE Input Port / 3Ch PoE Out Port)
  • 4 x 10/100Mbps PoE Interface
  • Supply Voltage IEEE802.3af, IEEE802.3at, IEEE802.3bt
  • Max Distance 100m
  • Check network status via LED Indicator
  • Cable Entry : 4 x 1/2″ NPT
  • 2 x Ex-Proof Cable Gland Included
ITEM iNET-H1000
Ex Certifications IECEx / ATEX / KCs / TS
Ex Certifications (Gas) Ex d IIC T6 Gb, Zone 1 & 2
Ex Certifications (Dust) Ex tb IIIC T78°C Db, Zone 21 & 22
Construction AISI 316L Stainless Steel
Window Tempered Glass
Ingress Protection Rating IP66
Ambient / Storage Temperature -40°C ~ +60°C
Operating Temperature -10°C ~ +50°C
Operation / Storage Humidity 0% ~ 95% RH

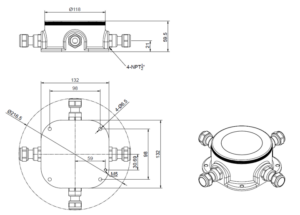

Dimensions Ø118 × 59.5(H) mm
Weight About 2.5 kg
Cable Gland Ex-Cable Gland 2 Set Included
Cable Entry 4 × 1/2″ NPT
Interface 4 × 10/100Mbps PoE Interface
Port – Input 1 Port RJ45 (Support Mode A or Mode B), 90W
Port – Output 3 Port RJ45 (Support Mode A or Mode B), Max. 30W/ch
LED Indicator – Input Power Status (Red) / PoE Link (Green)
LED Indicator – Output Power Status (Yellow) / PoE Link (Green)
Network Status Check NVR / IP Camera Network Status Check
Supply Voltage IEEE 802.3af / IEEE 802.3at / IEEE 802.3bt
Distance Extension Additional 100m beyond the standard 100m network transmission limit, up to 200m
